High Speed Fabric Roll Up Doors

Fabric roll up doors are the ultimate solution for efficient, automatic fast opening and closing for industrial and commercial spaces. High speed PVC roller doors are designed to withstand quick performance, serving you seamless and safety warehouses and commercial environments. As a leading high speed roll up door manufacturers, high speed fabric roll-up doors are made with aluminum alloy track , EPDM seal and safety airbag, offering fast acting, but economical purchasing cost.

Inquiry

PVC High Speed Roll up Door

Technical data:

Product Name	High Speed Rolling PVC Door
Maximum Door Size	W900mm*H8000mm,If more larger size, flexible double layer high speed folding door is suggested.
Opening speed	0.8 - 2.0 m/s, adjustable
Closing speed	0.6 - 1.0 m/s, adjustable
Operation way	Remote control, wall switch, Magnetic loop,Radar, Pull Rope Switch, Signal lamp
Emergency Operation	Available with manual crank
Curtain Thickness	0.8 / 1.0 / 1.2 / 1.5mm

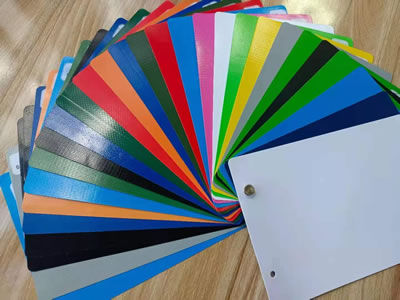

Curtain Color	Red RAL3002, Blue RAL5002, Yellow RAL1023, Orange RAL2004, Grey RAL9022.

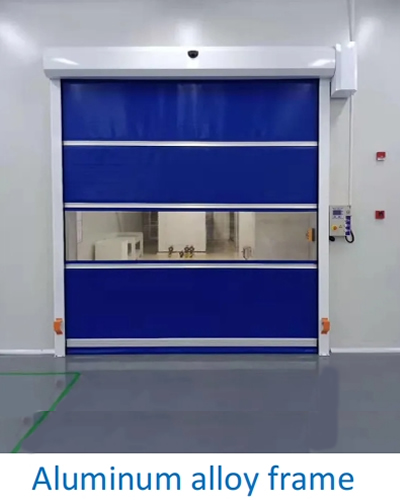

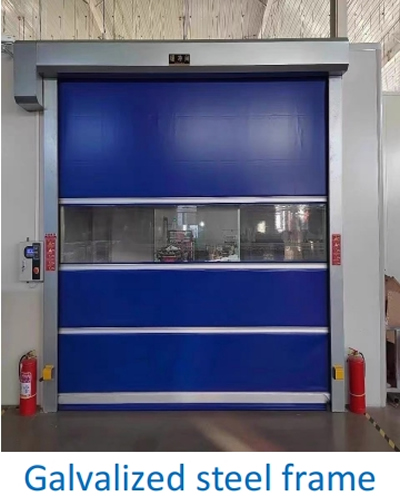

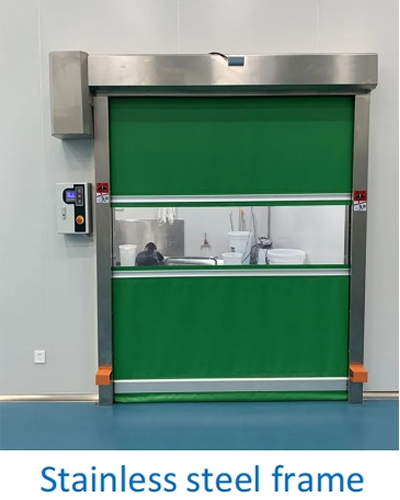

Hardware Material	Frame and Cover Box: 1.5mm coating galvanized steel; 2.0mm aluminum alloy; 2.0mm 304 stainless steel; Track Guide - Galvanized Steel / 304 Stainless Steel / Aluminum extrusion Wind Resistance Bar - Aluminum Extrusion Curtain - SIOEN high strength polyester textile fiber Vision panel - 1.5mm thick transparent PVC
Motor Brand	POWEVER, SNMA, SEW, SIEMENS,SEJ,SERVO

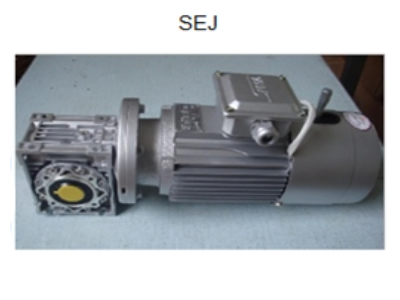

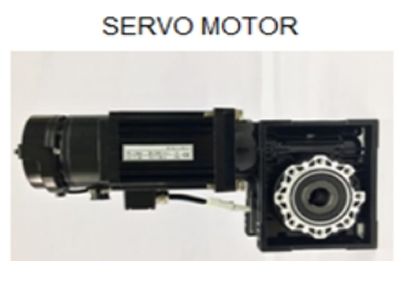

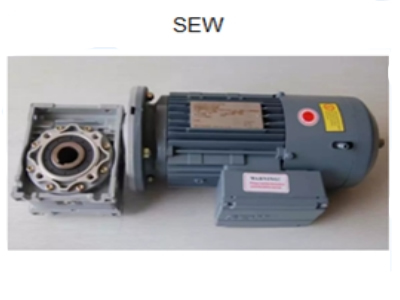

Door opener	1) Servo motor,0.75-.1.5KW, 50-60HZ 2) SEW motor:0.75-2.2KW, 50-60HZ 3) SEJ motor:0.9-2.2KW, 50-60HZ
Input Voltage	220V 50HZ/380V 50HZ

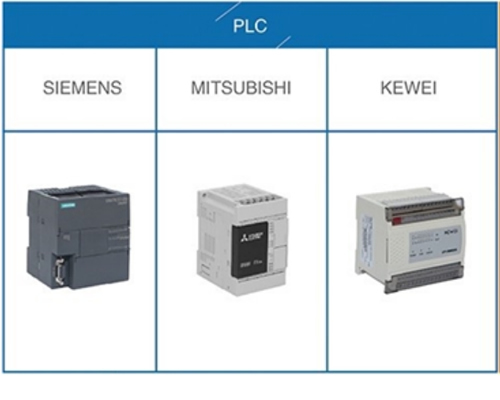

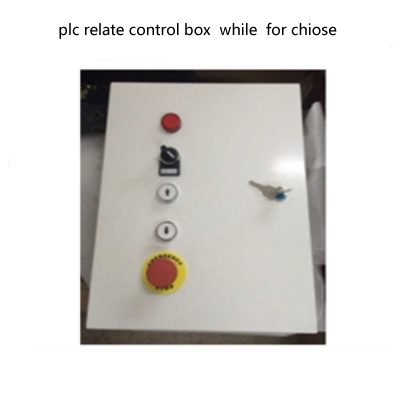

PLC Brand	SIEMENS / MITSUBISHI / OMRON /KEWEI

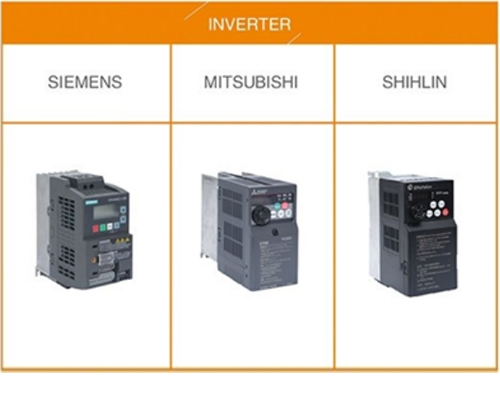

Inverter / AC Driver	MITSUBISHI,SIEMENS,SHIHLIN

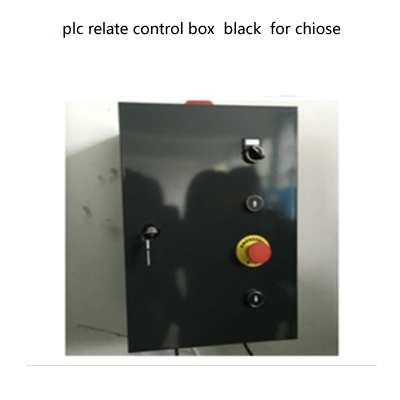

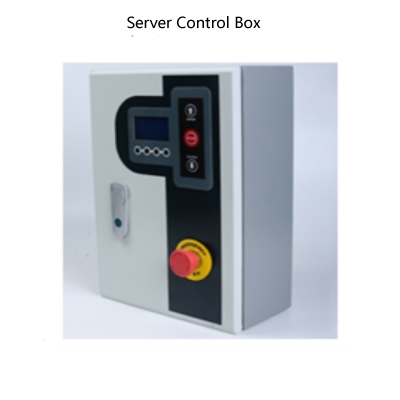

Control Box Finish	Powder coated steel /304 stainless steel
Safety Performance	Infrared photo sensor, Safety airbag edge protection
Tolerance Frequency	2 times/min, Inverter opening 2500-3000 times/day
Safety Class	IP55
Wind Resistance	Class 5-8 (Beaufort Scale)
Operating Life	500,000 cycles
Working Temperature	-25 °C to 65 °C
Application	Automotive, Electronics, Logistics, Food, Electronics, Pharmaceuticals, Traditional Manufacturing and other Industries.
Warranty	1 year for electric parts, 5 years for mechanical parts
