High Speed Roll up Freezer Doors for Cold Storage Room

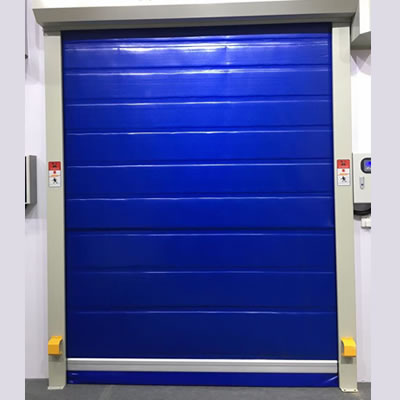

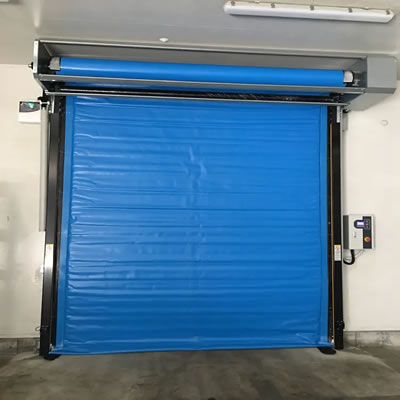

High Speed Roll up Freezer Door for Cold Storage Room

Cold storage roll up door is ideal for cold storage room doors and provides insulation for your storage warehouse to save costs while maintaining low temperatures. With high-density insulation, energy usage and costs are minimized, making it perfect for warehouses requiring consistent refrigeration or freezer units. high speed roll up cold storage door guarantees efficient transitions and prevents unnecessary temperature fluctuations. It's an indispensable tool for those seeking cost-effective refrigeration without compromising on efficiency.

Inquiry

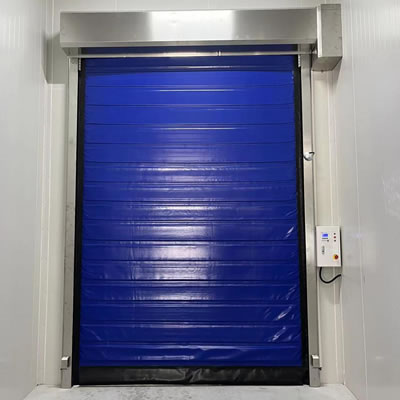

Freezer Cold Room High Speed Rolling Door

Technical data:

Item	Freezer cold room high speed door
Curtain Fabric :	High density French brand SIOEN fabric+insulation material inside
Curtain Fabric Color:	Color: Deep blue, grey, yellow, red, orange.

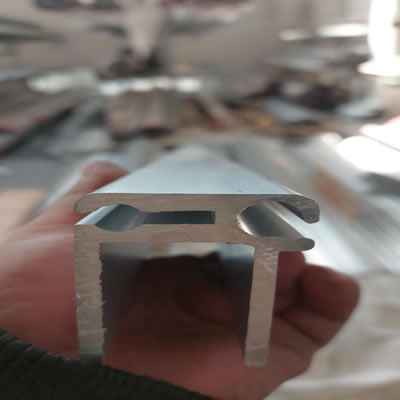

Cover box/ Track:	Stainless steel/ Aluminum alloy/ Galvanized Steel

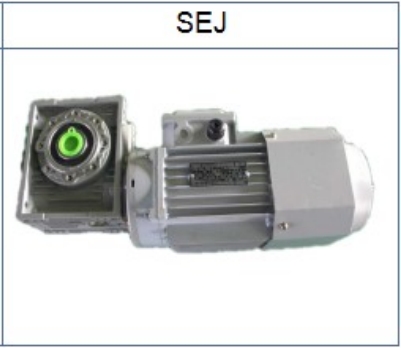

Motor:	Servo/ SEW( Germany)/ SEJ
Operating speed:	0.8m/s-1.6m/s, adjustable
Max. area:	48m², 6000 mm / 8000 mm (DW max/ DH max.)
Motor power:	0.75KW~2.2KW, 110V/ 220V/ 380V/ 480V. 50HZ/60HZ
Wind resistance:	12~19KM/H
Temperature range	-35℃ to 60℃

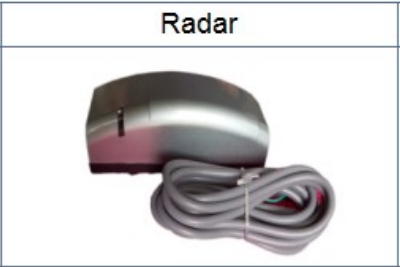

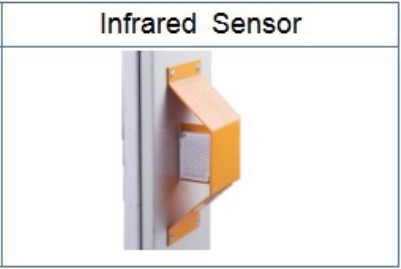

Standard Accessories:	Radar, push button, infrared light,

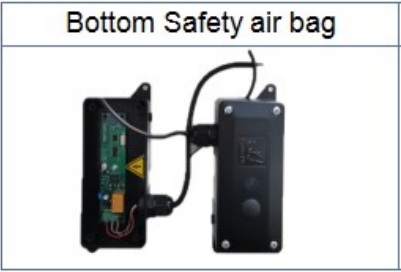

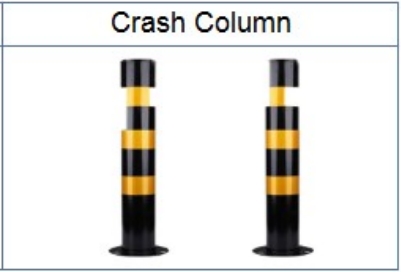

Optional Accessories:	Remote control,bottom safety air bag, Motor Manual Rocker. Crash Column, Pedestrian and vehicle split radar, and so on.
Warranty	5 years for mechanical parts, 1 year for electronic parts

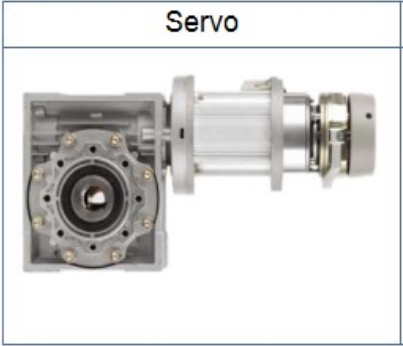

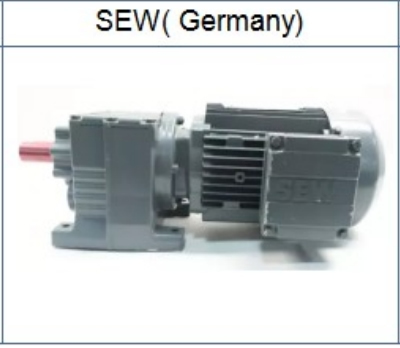

Motor Options

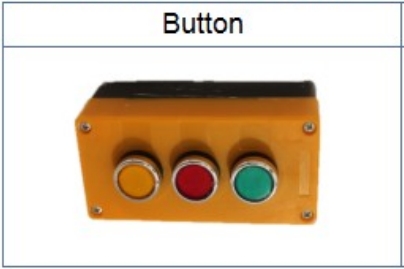

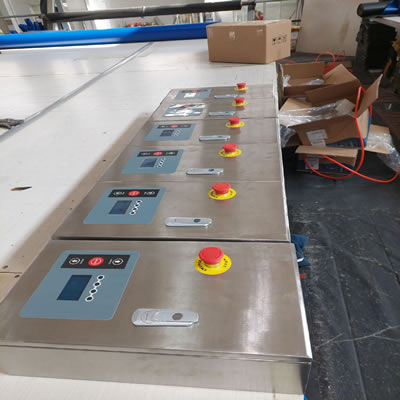

Standard Control Options

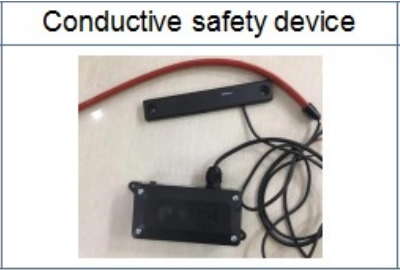

Safety Device

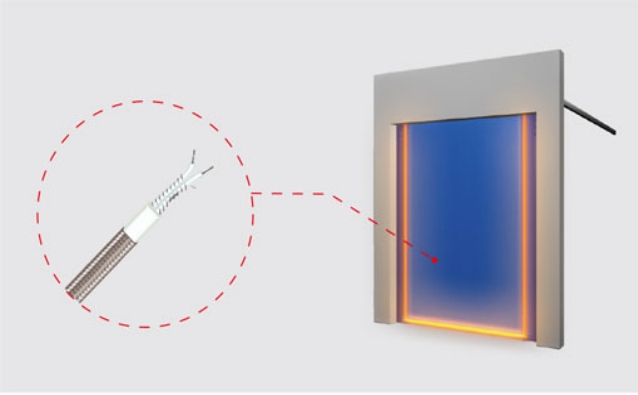

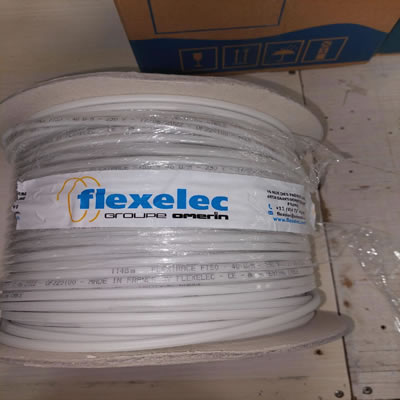

Antifreeze heating structure

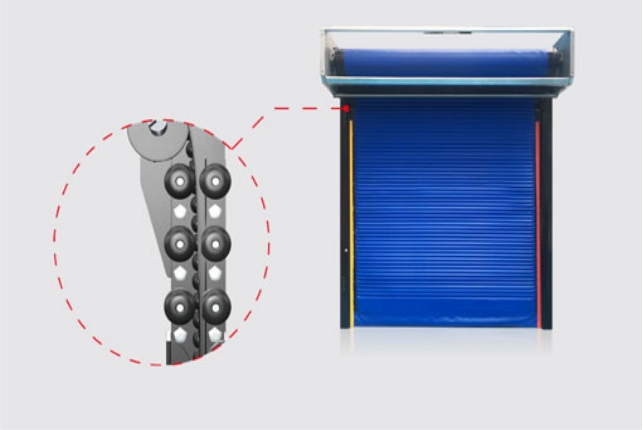

1. Three-sided heating structure design of door body to prevent frosting

2. The door curtain shakes up and down in a short frequency during the time period to prevent the door curtain from frosting and freezing and affecting the movement

Safety devices

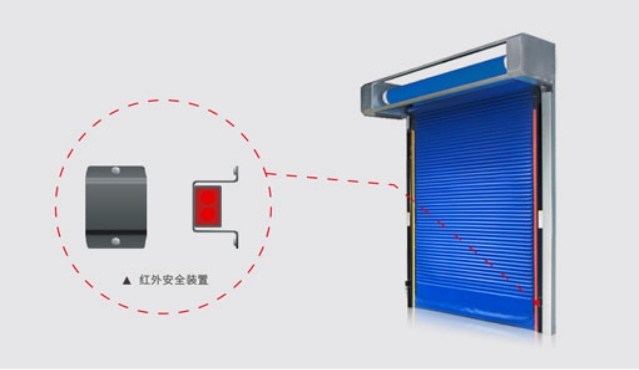

A pair of infrared protection devices are installed on both sides of the door to ensure safety

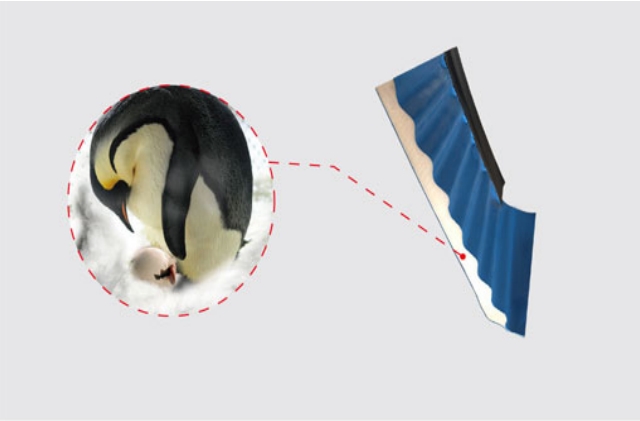

Insulation device

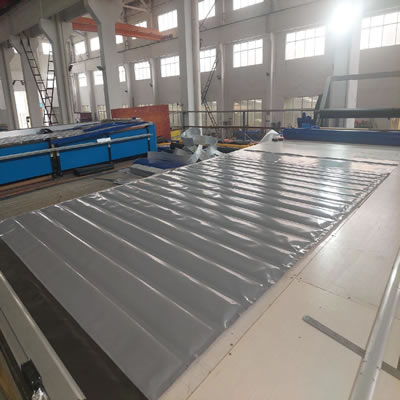

1. Double-layer low-temperature resistant cold storage special environmental protection door curtain, filled with environmental protection polymer thermal insulation material in the middle

2. Wavy structure to improve lateral strength
