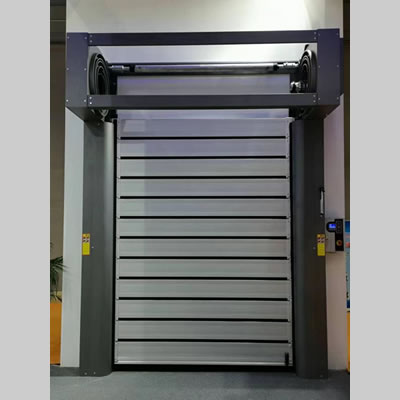

Aluminum Alloy High Speed Spiral Door

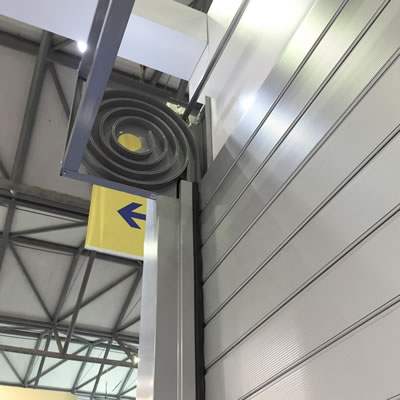

High speed aluminum rolling door with cutting-edge technology, combines the benefits of an alloy spiral design with lightning-fast opening and closing speeds, making it the perfect solution for commerce, workshops and manufacturers, looking for an efficient and durable automatic entrance door solution. Our spiral overhead doors feature a solid aluminum alloy helix construction, ensuring maximum strength and longevity, while also providing a stylish appearance. This innovative design enables the insulated door to travel at lightning speeds of up to three meters per second, making it ideal for high traffic areas and large opening requirements

Inquiry

Aluminum Alloy Spiral High Speed Door

Technical data:

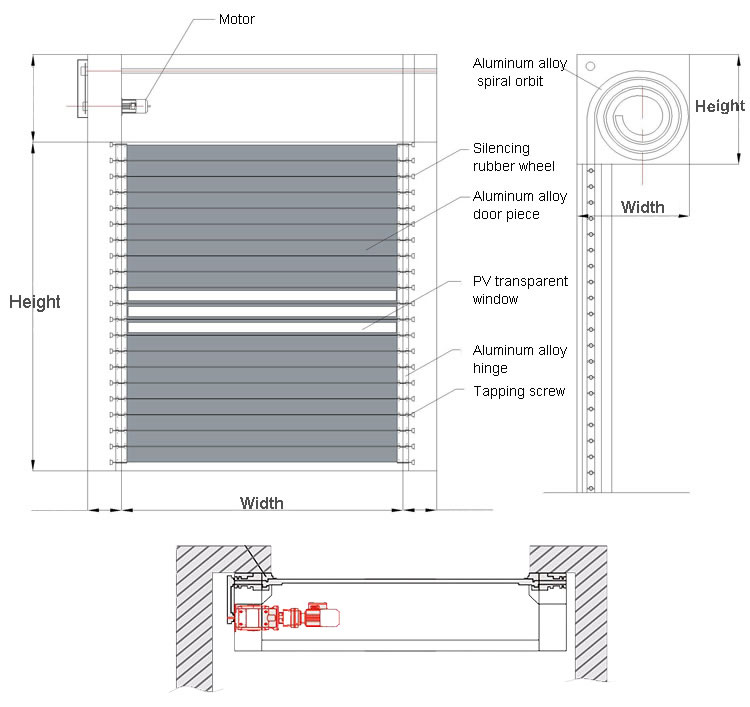

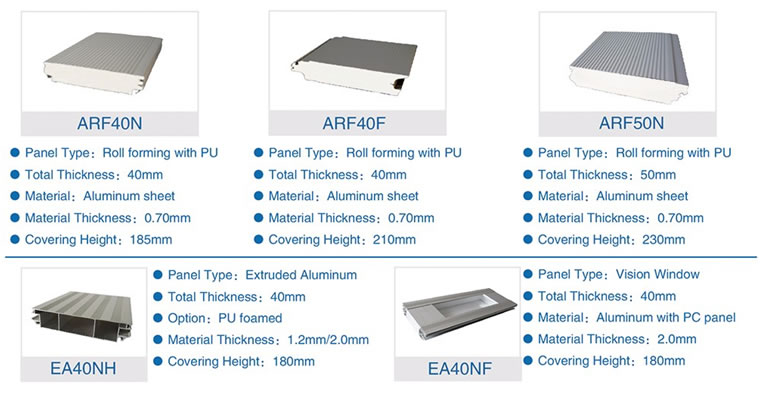

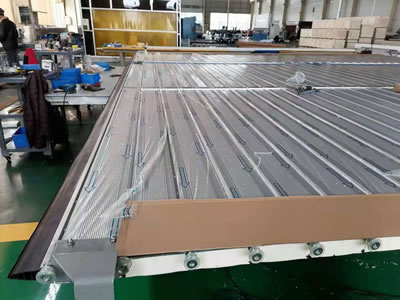

Door panel material	double layer hollow aluminum alloy(0.8mm), with insulated PU foam inside, panel thickness: 40mm

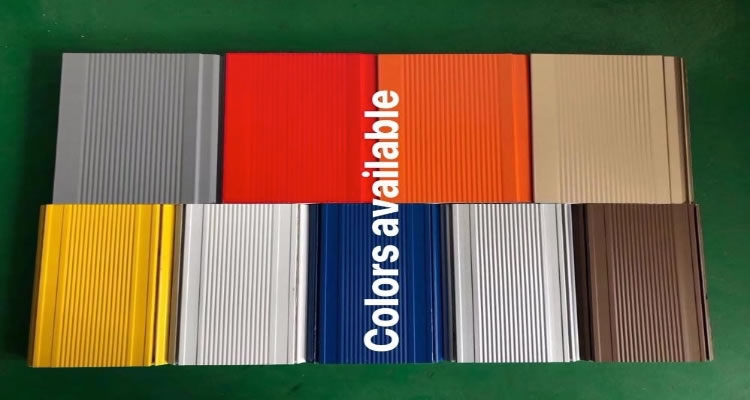

Panel color	Silver,white or champagne in stock, other special colors can be customized

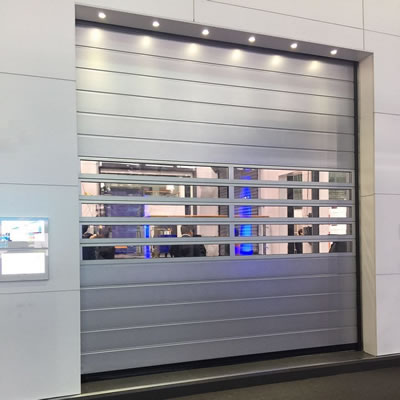

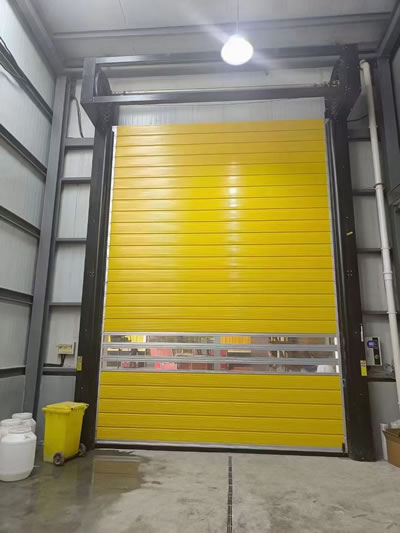

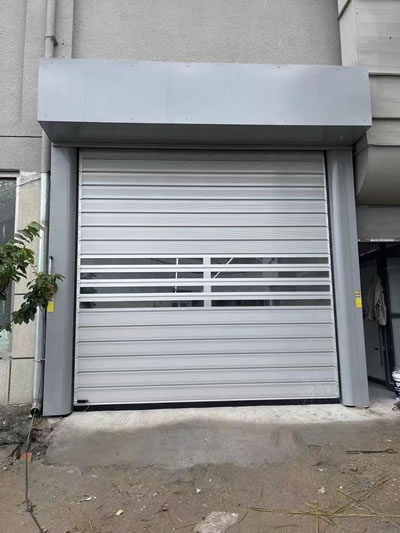

Visual window (optional)	High quality polycarbonate slat, can be choose 3-5 rows of slats as visual windows for lighting.

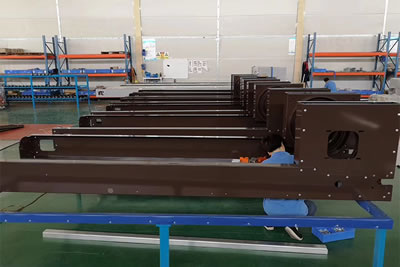

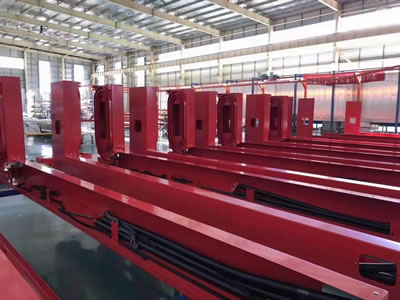

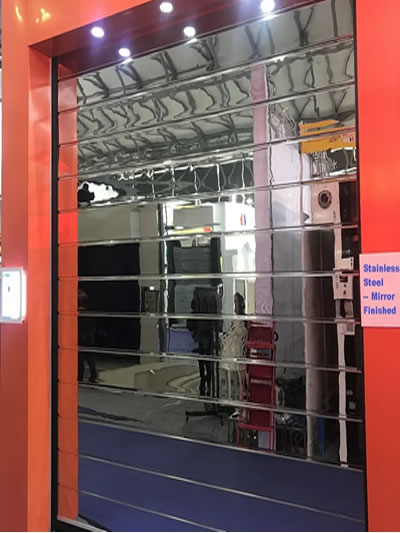

Frame and cover	1. Standard: powder coated galvanized steel 2. Optional: #304 stainless steel, ensure high quality

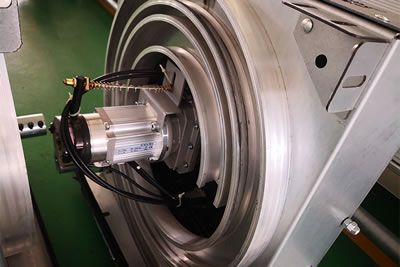

Door opener	Three kinds for choice: 1) Servo motor,0.75-.1.5KW, 50-60HZ 2) SEW motor:0.75-2.2KW, 50-60HZ 3) SEJ motor:0.9-2.2KW, 50-60HZ German SEW motor, Taiwan Shihlin Inverter, Kewei plc (Mitsubishi technology)

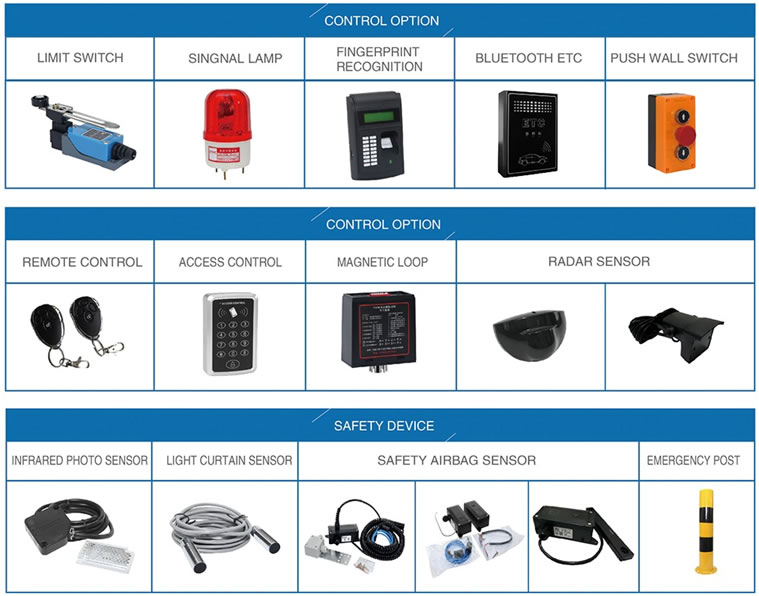

Operating way	Standard: photocell, radar,and push button Optional: loop detector, remote control, light curtain sensor, safety airbag, magnetic card, pull cord
Max size	W8000mm*H8000mm
Running speed	0.8-2.0m/s, can be adjustable. 2500 times a day
Working condition	-40℃ to 70℃
Wind resistance	3.5 k Pa, reached grade 6 of the GB; Wind resistance grade 12 (120km/h)
Heat preservation performance	at least be K ≤ 1.7W/ (m2•K)
Air tightness	8.68m3 / (m2 • h), reached the national standard grade 3
Water tightness	≤700Pa, which reached the national standard grade 6

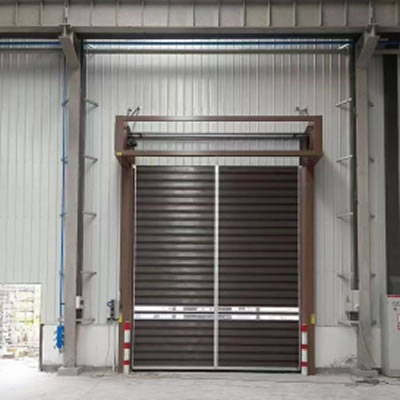

Application	Industry, commercial related place, enjoying all advantages of high speed door, windproof door, safety door
MOQ	1SET
Warranty	1 year for electric parts, 5 years for mechanical parts

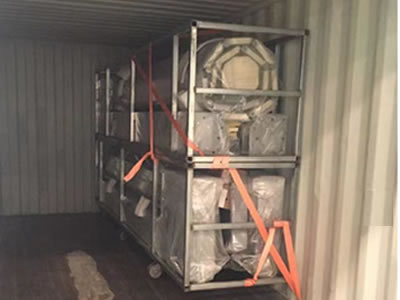

Package	LCL: plywood case , FCL: Strong carton, MOQ:1SET
